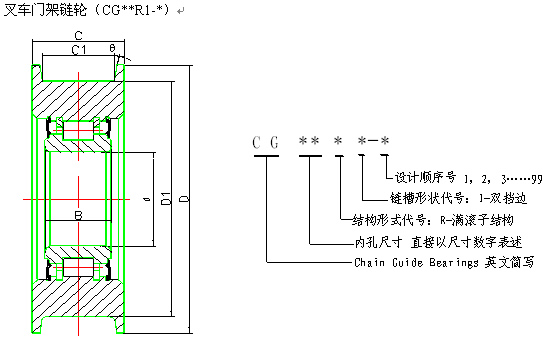

CG30R1-2叉车轴承、CG30R1-2门架滚轮轴承、CG30R1-2叉车链轮轴承
|
|
|
轴承型号 |
尺 寸（ mm ） |
额定载荷（ KN ） |
|
d |
D |
D1 |
C |
C1 |
B |
θ |
Cr |
Cor |
|
CG30R1-1 |
30 |
73 |
65 |
27 |
20.5 |
26 |
15 ° |
50 |
62 |
|
CG30R1-2 |
30 |
77 |
65 |
34 |
22 |
26 |
12 ° |
57.8 |
72.8 |
|
CG35R1-1 |
35 |
69 |
60 |
26 |
20 |
20 |
10 ° |
39.6 |
56.9 |
|
CG35R1-4 |
35 |
87 |
75 |
29 |
22 |
31 |
15 ° |
39.6 |
56.9 |
|
CG40R1-2 |
40 |
100 |
82 |
47 |
35 |
26 |
16 ° |
58.3 |
79.9 |
|
CG40R1-3 |
40 |
78 |
70 |
25 |
19 |
26.5 |
10 ° |
54.1 |
78.8 |
|
CG40R1-7 |
40 |
124 |
106 |
36 |
25 |
26 |
15.5 ° |
83.8 |
116.4 |
|
CG40R1-8 |
40 |
108 |
94 |
33.2 |
25 |
23 |
6 ° |
52.8 |
63.6 |
|
CG40R1-10 |
40 |
100 |
82 |
36 |
27 |
26 |
15 ° |
58.3 |
79.9 |
|
CG45R1-1 |
45 |
150 |
128 |
69 |
50 |
50.8 |
20 ° |
174 |
230 |
|
CG45R1-5 |
45 |
136 |
127 |
38 |
31 |
40 |
15 ° |
150.1 |
275.8 |
|
CG50R1-1 |
50 |
130 |
106 |
52 |
36 |
40 |
10 ° |
121 |
150.9 |
|
CG50R1-4 |
50 |
124 |
104 |
43 |
31 |
30 |
12 ° |
76.5 |
113.7 |
|
CG50R1-6 |
50 |
124 |
104 |
56 |
42 |
35 |
8.5 ° |
76.5 |
113.7 |
|
CG55R1-1 |
55 |
158 |
130 |
65 |
55 |
67 |
10 ° |
265.7 |
391.5 |
|
CG55R1-2 |
55 |
145 |
120 |
56 |
41 |
40 |
10 ° |
155 |
196 |
|
CG55R1-5 |
55 |
156 |
136 |
52 |
37 |
40 |
6 ° |
155 |
196 |
|
CG60R1-1 |
60 |
165 |
130 |
62.5 |
47 |
44.5 |
14 ° |
229 |
315 | | |
