英制圆锥滚子轴承-南京哈宁轴承制造有限公司

英制圆锥滚子轴承

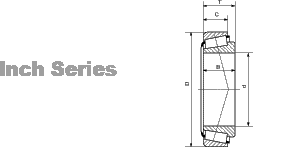

Bearing No.	d×D×T(mm)	Mass(kg)	Bearing No.	d×D×T(mm)	Mass(kg)
5BC	28.313	0.0154	15113/15245	28.575×62×19.05	0.28
11BC	33.297	0.0275	16137/16282	34.925×72×19	0.36
09067/09195	19.05×49.225×18.034	0.1804	16150/16282	38.1×72×19	0.332
09081/09195	20.625×49.225×19.845	0.1555	1755/1729	22.225×56.896×19.368	0.254
TR101204/72487	50×123.825×36.512	2.101	17887/17831	45.23×79.985×19.842	0.41
LM104949/LM104911	50.8×82.55×21.59	0.42	18590/18520	41.275×73.025×16.667	0.285
JLM104947A/JLM104910	50×82×21.976	0.434	18790/18720	50.800×85×17.462	0.42
JLM104948/JLM104910	50×82×21.5	0.422	HM21207/HM212011	63.5×122.238×38.1	1.84
LM104949/JLM104910	50.8×82×21.976	0.418	HM212049/HM212011	66.675×122.238×38.1	1.85
LM104949E/LM104911	50.8×82.55×16.51	0.438	HM218248/HM218210	89.974×146.975×40	2.52
JLM104948/LM104911	50×82.55×21.115	0.424	24780/24720	41.275×76.2×22.225	0.424
LM104949/LM104912	50.8×82.931×21.59	0.425	25570/25520	36.513×82.931×23.813	0.651
LM102949/LM102910	45.252×73.431×19.558	0.303	25572/25520	38.1×82.931×23.813	0.642
11590/11520	15.875×42.862×14.288	1.001	25577/25520	42.875×82.931×23.812	0.69
LM11749/LM11710	17.462×39.878×13.843	0.083	25577/25522	42.875×83.058×23.876	0.70
LM11949/LM11910	19.05×45.237×15.494	0.124	25580/25520	44.45×82.931×23.812	0.561
M12649/M12610	21.43×50.005×17.526	0.174	25581/25520	44.45×82.931×23.812	0.563
LM12748/LM12710	21.43×45.237×15.494	0.118	25590/25520	45.618×82.931×23.812	0.54
LM12749/LM12710	22×45.237×15.494	0.116	25590/25521	45.618×83.058×23.812	0.534
LM12749/LM12711	22×46×15.494	0.121	25590/25522	45.618×83.058×23.876	0.538
13686/13620	38.1×69.012×19.05	0.296	25590/25523	45.618×82.931×26.988	0.584
14125A/14276	31.75×69.012×19.845	0.349	25877/25820	34.925×73.025×23.812	0.474
14137A/14276	34.925×69.012×19.845	0.325	25877/25821	34.925×73.025×23.812	0.468
14138A/14276	34.925×69.012×19.845	0.322	25880/25821	36.487×73.025×23.812	0.451
14138/14274	34.925×69.012×19.845	0.32	27687/27620	82.55×125.412×25.4	1.50
15101/15245	25.4×62×19.05	0.2821	2785/2720	33.338×76.2×23.813	0.544
15123/15245	31.75×62×19.05	0.2331	2788/2729	38.1×76.2×23.813	0.496
15123/15243	31.75×61.912×19.05	0.2301	2788/2720	38.1×76.2×23.813	0.49
15103S/15245	26.162×62×19.05	0.2791	2790/2720	33.338×76.2×23.813	0.549
15126/15245	31.75×62×19.05	0.255	2790/2729	33.338×76.2×23.813	0.555
28580/28521	50.8×92.075×24.608	0.697	462/453X	57.15×104.775×30.162	1.08
28584/28521	52.388×92.075×24.608	0.669	L44643/L44610	25.4×50.292×14.224	0.129
28678/28622B	50.8×97.63×24.608	0.865	L44643L/L44610	25.4×50.292×14.224	0.129
28985/28920	60.325×101.6×25.4	0.79	L44649/L44610	26.988×50.292×14.224	0.124
29590/29522	66.675×107.95×25.4	0.874	L45449/L45410	29×50.292×14.224	0.113
29685/29620	73.025×112.712×25.4	0.861	LM48548/LM48510	34.92×65.088×18.034	0.2584
LM29749/LM29710	38.1×65.088×18.034	0.238	LM501349/LM501310	41.275×73.431×19.558	0.333
LM300849/LM300811	41×68×17.5	0.2403	LM501349/LM501314	41.275×73.431×21.43	0.353
JLM506849/10	55×90×23	0.69	HM518445/HM518410	88.9×152.4×39.688	2.875
57414/LM300811	41×68×17.5	0.2433	575/572	76.2×139.992×36.512	2.442
33275/33462	69.85×117.475×30.112	1.28	593/592A	88.9×152.4×39.688	2.78
33281/33472	71.438×120×29.794	1.33	LM603049/LM603011	45.242×77.788×19.842	0.358
33889/33821	50.8×95.25×27.783	0.862	LM603049/LM603012	45.242×77.788×21.43	0.377
3579/3525	42.862×87.312×30.162	0.805	A6075/A6157	19.05×39.992×12.014	0.066
368A/362A	50.8×88.9×20.638	0.153	L610549/L610510	63.5×94.458×19.05	0.449
368/362	50.8×90×20	0.562	LM67048/LM67010	31.75×59.131×15.875	0.179
3776/20	44.983×93.264×30.162	0.73	LM67049A/LM67010	31.75×59.131×15.875	0.184
3780/3720	50.8×93.264×30.162	0.856	67989/67920	209.55×282.575×46.038	7.73
3782/3720	44.45×93.264×30.162	0.735	L68149/L68110	34.981×59.131×15.875	0.1702
3872/3820	34.925×85.725×30.162	0.88	L68149/L68111	34.981×59.974×15.875	0.1770
387AS/382A	57.150×96.838×21	0.593	JL69349/JL69310	38×63×17	0.196
387A/382S	57.15×96.838×25.4	0.669	JM716649/JM716610	85×130×130	1.704
387A/382	57.15×98.425×21	0.646	78215C/78551	53.975×140.03×36.512	2.7122
387A/382A	57.15×96.838×21	0.598	M802048/M802011	41.275×82.55×26.543	0.615
U399/U360L	39.688×73.025×19.395	0.357	HM803146/HM803110	41.275×88.9×30.162	0.886
3982/3920	63.5×112.713×30.162	1.22	HM803149/HM803110	44.450×88.9×30.162	0.836
3984/3920	66.675×112.713×30.162	1.14	JL819349/JL819310	95×125×20	0.8382
390A/394A	63.5×110×22	0.851	M86649/M86610	30.162×64.292×21.433	0.337
42688/42620	76.2×127×30.162	0.40	M88048/M88010	33.338×68.262×22.225	0.383
			HM88649/HM88610	34.925×72.333×25.4	0.479
