HC202S轴承、HC202-10S轴承、HC203S轴承、HC203-11S轴承、HC204-12轴承、HC204轴承、NA205-14轴承、HC205-15轴承、HC205轴承、HC205-16轴承、NA206-18轴承、HC206轴承-南京哈宁轴承制造有限公司

HC202S轴承、HC202-10S轴承、HC203S轴承、HC203-11S轴承、HC204-12轴承、HC204轴承、NA205-14轴承、HC205-15轴承、HC205轴承、HC205-16轴承、NA206-18轴承、HC206轴承

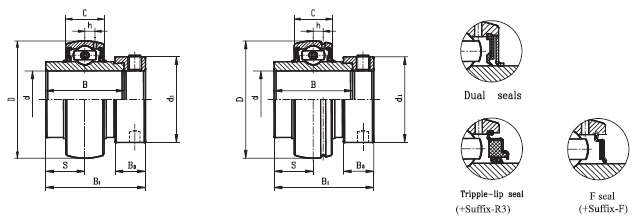

Bearing No.	shaft Dia.		Dimensions(mm)/(in.)								Eccentric collar	Basic load ratings (N)		Mass(kg)
	d		D	C	B	S	B1	B3	h	d1		Dynamic Cr	Static Cor
	(in.)	(mm)	D	C	B	S	B1	B3	h	d1		Dynamic Cr	Static Cor
HC202S		15	40	14	27.8	13.9	37.3	13.5	3.5	28.6	A202S	9550	4780	0.22
HC202-10S	5/8		40	14	27.8	13.9	37.3	13.5	3.5	28.6	A202-10S	9550	4780	0.21
HC203S		17	40	14	27.8	13.9	37.3	13.5	3.5	28.6	A203S	9550	4780	0.20
HC203-11S	11/16		40	14	27.8	13.9	37.3	13.5	3.5	28.6	A203-11S	9550	4780	0.19
HC204-12	3/4		47	16	34	17	43.5	13.5	4.4	33.3	A204-12	12800	6650	0.23
HC204		20	47	16	34	17	43.5	13.5	4.4	33.3	A204-12	12800	6650	0.22
NA205-14	7/8		52	17	34.8	17.4	44.3	13.5	4.3	38.1	A205-14	14000	7880	0.29
HC205-15	15/16		52	17	34.8	17.4	44.3	13.5	4.3	38.1	A205-15	14000	7880	0.27
HC205		25	52	17	34.8	17.4	44.3	13.5	4.3	38.1	A205	14000	7880	0.25
HC205-16	1		52	17	34.8	17.4	44.3	13.5	4.3	38.1	A205-16	14000	7880	0.24
NA206-18	1-1/8		62	19	36.4	18.2	48.3	15.9	5	44.5	A206-18	19500	11200	0.43
HC206		30	62	19	36.4	18.2	48.3	15.9	5	44.5	A206	19500	11200	0.41
HC206-19	1-3/16		62	19	36.4	18.2	48.3	15.9	5	44.5	A206-19	19500	11200	0.40
HC206-20	1-1/4		62	19	36.4	18.2	48.3	15.9	5	44.5	A206-20	19500	11200	0.38
NA207-20	1-1/4		72	20	37.6	18.8	51.1	17.5	5.8	55.6	A207-20	25700	15200	0.68
HC207-21	1-5/16		72	20	37.6	18.8	51.1	17.5	5.8	55.6	A207-21	25700	15200	0.65
HC207-22	1-3/8		72	20	37.6	18.8	51.1	17.5	5.8	55.6	A207-22	25700	15200	0.61
HC207		35	72	20	37.6	18.8	51.1	17.5	5.8	55.6	A207	25700	15200	0.60
HC207-23	1-7/16		72	20	37.6	18.8	51.1	17.5	5.8	55.6	A207-23	25700	15200	0.58
NA208-24	1-1/2		80	21	42.8	21.4	56.3	18.3	6.3	60.3	A208-24	29600	18200	0.83
HC208-25	1-9/16		80	21	42.8	21.4	56.3	18.3	6.3	60.3	A208-25	29600	18200	0.79
HC208		40	80	21	42.8	21.4	56.3	18.3	6.3	60.3	A208	29600	18200	0.78
NA209-26	1-5/8		85	22	42.8	21.4	56.3	18.3	6.8	63.5	A209-26	31850	20800	0.96
HC209-27	1-11/16		85	22	42.8	21.4	56.3	18.3	6.8	63.5	A209-27	31850	20800	0.91
HC209-28	1-3/4		85	22	42.8	21.4	56.3	18.3	6.8	63.5	A209-28	31850	20800	0.87
HC209		45	85	22	42.8	21.4	56.3	18.3	6.8	63.5	A209	31850	20800	0.85
NA210-30	1-7/8		90	23	49.2	24.6	62.7	18.3	6.5	69.9	A210-30	35100	23200	1.10
HC210-31	1-15/16		90	23	49.2	24.6	62.7	18.3	6.5	69.9	A210-31	35100	23200	1.04
HC210		50	90	23	49.2	24.6	62.7	18.3	6.5	69.9	A210	35100	23200	1.01
NA211-32	2		100	25	55.4	27.7	71.3	20.7	7.2	76.2	A211-32	43550	29200	1.58
HC211-34	2-1/8		100	25	55.4	27.7	71.3	20.7	7.2	76.2	A211-34	43550	29200	1.44
HC211		55	100	25	55.4	27.7	71.3	20.7	7.2	76.2	A211	43550	29200	1.39
HC211-35	2-3/16		100	25	55.4	27.7	71.3	20.7	7.2	76.2	A211-35	43550	29200	1.36
NA212-36	2-1/4		110	27	61.8	30.9	77.7	22.3	8.2	84.2	A212-36	47800	32800	2.03
HC212		60	110	27	61.8	30.9	77.7	22.3	8.2	84.2	A212	47800	32800	1.87
HC212-38	2-3/8		110	27	61.8	30.9	77.7	22.3	8.2	84.2	A212-38	47800	32800	1.85
HC212-39	2-7/16		110	27	61.8	30.9	77.7	22.3	8.2	84.2	A212-39	47800	32800	1.76
NA213-40	2-1/2		120	28	68.2	34.1	85.7	23.5	8	86	A213-40	57200	40000	2.51
HC213		65	120	28	68.2	34.1	85.7	23.5	8	86	A213	57200	40000	2.41
NA214-44	2-3/4		125	30	68.2	34.1	85.7	23.5	9	96.8	A214-44	60800	45000	2.58
HC214		70	125	30	68.2	34.1	85.7	23.5	9	96.8	A214	60800	45000	2.57
NA215		75	130	30	74.6	37.3	92.1	23.9	9	102	A215	66000	49500	2.84
HC215-48	3		130	30	74.6	37.3	92.1	23.9	9	102	A215-48	66000	49500	2.74
NA216		80	140	33	74.6	37.3	95.2	27	10.3	110	A216	71500	54200	3.12
NA201S		12	40	14	27.8	13.9	37.3	13.5	3.5	28.6	A201S	9550	4780	0.23
HC201-8S	1/2		40	14	27.8	13.9	37.3	13.5	3.5	28.6	A201-8S	9550	4780	0.23
NA201		12	47	16	34	17	43.5	13.5	4.4	33.3	A201	12800	6650	0.28
HC201-8	1/2		47	16	34	17	43.5	13.5	4.4	33.3	A201-8	12800	6650	0.27
HC202		15	47	16	34	17	43.5	13.5	4.4	33.3	A202	12800	6650	0.26
HC202-10	5/8		47	16	34	17	43.5	13.5	4.4	33.3	A202-10	12800	6650	0.25

Bearing No.	shaft Dia.		Dimensions(mm)/(in.)								Eccentric collar	Basic load ratings (N)		Mass(kg)
	d		D	C	B	S	B1	B3	h	d1		Dynamic Cr	Static Cor
	(in.)	(mm)	D	C	B	S	B1	B3	h	d1		Dynamic Cr	Static Cor
HC203		17	47	16	34	17	43.5	13.5	4.4	33.3	A203	12800	6650	0.24
HC203-11	11/16		47	16	34	17	43.5	13.5	4.4	33.3	A203-11	12800	6650	0.24
HC216		80	140	33	74.6	37.3	95.2	27	10.3	110	A216	71500	54200	3.12
NA217		85	150	35	53.2	23.4	73.2	27	11	119	A217	83200	63800
HC217-52	3-1/4		150	35	53.2	23.4	73.2	27	11	119	A217	83200	63800
NA218-56	3-1/2		160	37	55	24.5	72.5	24	12	120	A218-56	95900	71500
HC218		90	160	37	55	24.5	72.5	24	12	120	A218	95900	71500	HRBN
