DA30AB滑块、DA30ABL滑块、DA35AB滑块、DA35ABL滑块、DA45AB滑块、DA45ABL滑块、DA45BB滑块

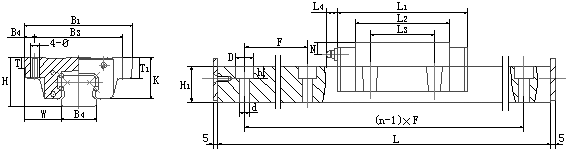

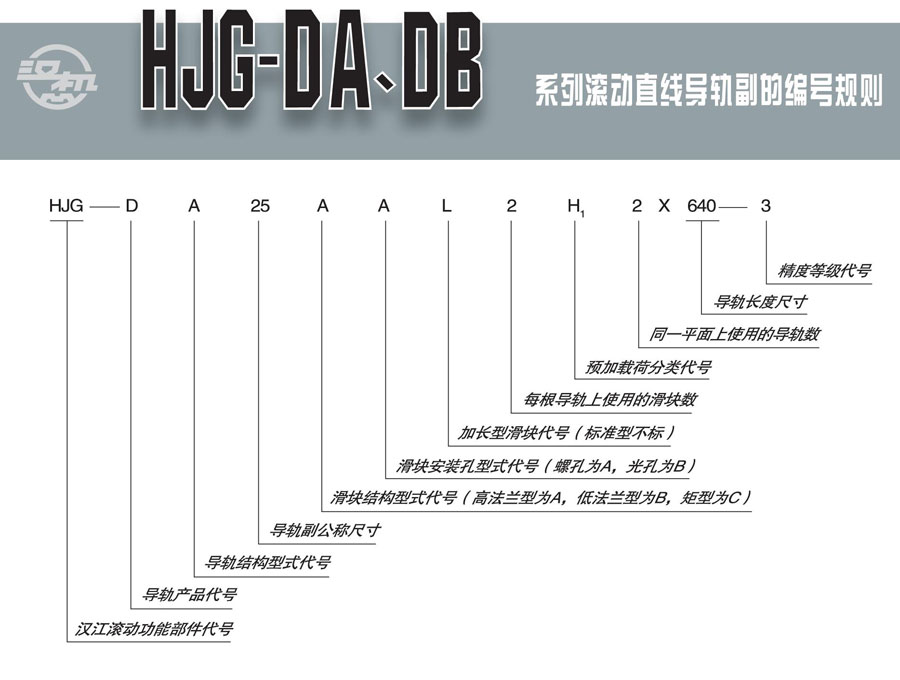

型号导轨副尺寸汉江滑块尺寸重量KG

滑块导轨

H W B1 B2 B3 K T T1 Ø L1 L2 L3 个米

HJS-DA15AB 24 16 47 4.5 38 19.4 7 11 4.5 58 40.5 30 0.2 1.5

HJS-DA20AB 30 21.5 63 5 53 24 10 10 7 70 50 40 0.36 2.3

HJS-DA20ABL 86 66 0.47

HJS-DA25AB 37 23.5 70 6.5 57 30.5 12 16 7 79.5 59 45 0.6 3.3

HJS-DA25ABL 98.5 78 0.76

HJS-DA25BB 36 79.5 59 0.57

HJS-DA25BBL 98.5 78 0.72

HJS-DA30AB 42 31 90 9 72 35 10 18 9 95.2 70 52 1.1 4.6

HJS-DA30ABL 117.2 92 1.3

HJS-DA35AB 50 33 100 9 82 38 13 21 11 107.8 81 62 1.7 6.2

HJS-DA35ABL 131.8 105 2.1

HJS-DA35BB 48 107.8 81 1.6

HJS-DA35BBL 131.8 105 1.9

HJS-DA45AB 62 37.5 120 10 100 51 15 25 13 135 102 80 3 11.1

HJS-DA45ABL 163 130 3.5

HJS-DA45BB 60 135 102 2.8

HJS-DA45BBL 163 130 3.3

HJS-DA55AB 72 43.5 140 12 116 57 20 29 14 161 118 95 4.7 14.9

HJS-DA55ABL 199 156 6

HJS-DA55BB 70 161 118 4.4

HJS-DA55BBL 199 156 5.7

HJS-DA65AB 90 53.5 170 14 142 76 23 37 16 195 147 110 8.5 21.7

HJS-DA65ABL 255 207 10.7

HJS-DA85AB 110 65 215 15 185 94 30 55 18 243.4 179 140 17 36.1

HJS-DA85ABL 300.4 236 23

型号汉江导轨尺寸单根额定额定额定力矩油杯尺寸

长度动载静载

L4 G N B4 H1 F Lmax C C0 MA MB MC d×D×h

(KN) (KN) (N.m) (N.m) (N.m)

HJS-DA15AB 2.5 Φ4 4 16 15 60 500 6.07 6.8 55.5 55.5 88.8 4.5×7.5×5.3

HJS-DA20AB 11 M6 6 20 18 60 1400 11.6 14.5 92.4 92.4 154 6×9.5×8.5

HJS-DA20ABL 13.6 20.3 121.8 121.8 203

HJS-DA25AB 11 M6 7.2 23 22 60 3000 17.7 22.6 149.8 149.8 246 7×11×9

HJS-DA25ABL 20.7 34.97 244.8 244.8 402

HJS-DA25BB 17.7 22.6 149.8 149.8 246

HJS-DA25BBL 20.7 34.97 244.8 244.8 402

HJS-DA30AB 11 M6 7 28 26 80 3000 27.6 34.4 311.3 311.3 546 9×14×12

HJS-DA30ABL 33.4 45.8 560 560 745.2

HJS-DA35AB 11 M6 8 34 29 80 3000 35.1 47.2 488 488 790 9×14×12

HJS-DA35ABL 39.96 64.85 681 681 1102.45

HJS-DA35BB 35.1 47.2 488 488 790

HJS-DA35BBL 39.96 64.85 681 681 1102.45

HJS-DA45AB 11 M6 12 45 38 100 3000 42.5 71 848 848 1448 14×20×16

HJS-DA45ABL 64.4 102.1 1345.4 1345.4 2247.25

HJS-DA45BB 42.5 71 848 848 1448

HJS-DA45BBL 64.4 102.1 1345.4 1345.4 2247.25

HJS-DA55AB 14 M8×1 12 53 44 120 3000 79.4 101 1547 1547 2580 16×23×20

HJS-DA55ABL 92.2 142.5 2264.3 2264.3 3776.25

HJS-DA55BB 14 M8×1 12 53 44 120 3000 79.4 101 1547 1547 2580

HJS-DA55BBL 92.2 142.5 2264.3 2264.3 3776.25

HJS-DA65AB 14 M8×1 12 63 53 150 3000 115 163 3237 3237 4860 18×26×22

HJS-DA65ABL 148 224.5 4627.5 4627.5 6945.75

HJS-DA85AB 14 M8×1 14 85 65 180 3000 172.2 257.4 6076.4 6076.4 12842 24×35×28

HJS-DA85ABL 202.3 327.6 9946.3 9946.3 15410
