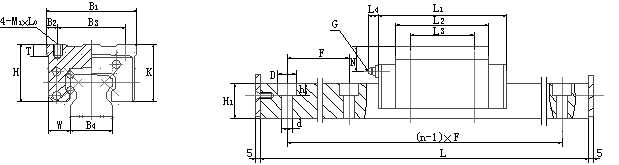

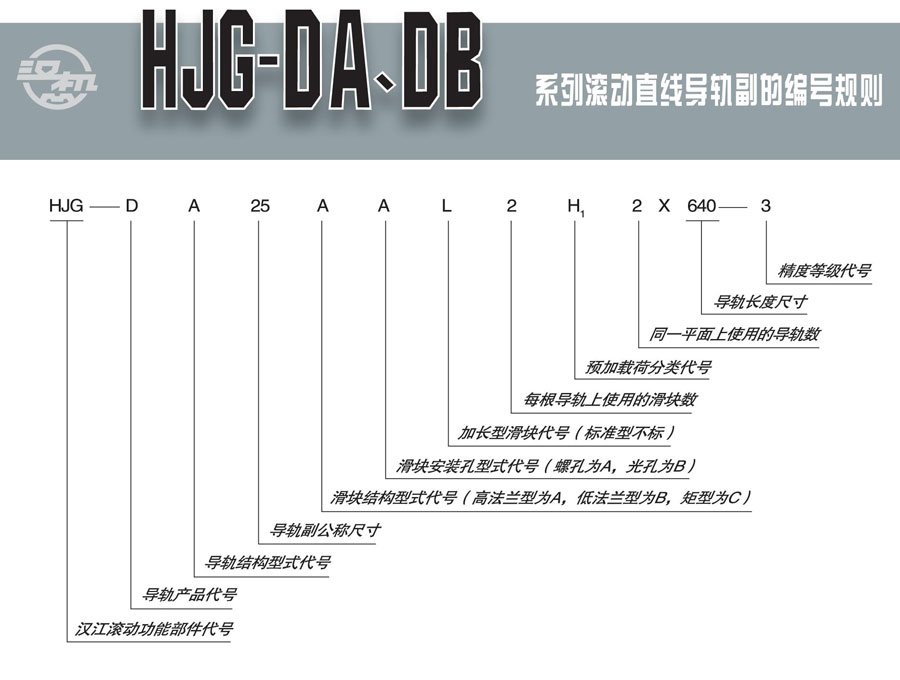

型号导轨副尺寸汉江滑块尺寸滑块

H W B1 B2 B3 K T M1×L0 L1 L2 L3 d×D×h 重量

只

kg

HJG-DA15C 28 9 34 4 26 23.4 6 M4×5.0 58 40.5 26 4.5×7.5×5.3 0.18

HJG-DA20C 30 12 44 6 32 24 8 M5×5 70 50 36 6×9.5×8.5 0.25

HJG-DA20CL 86 66 50 0.35

HJG-DA25C 40 12.5 48 6.5 35 33.1 8 M6×8 79.5 59 35 7×11×9 0.54

HJG-DA25CL 98.5 78 50 0.67

HJG-DA30C 45 16 60 10 40 38 8 M8×10 95.2 70 40 9×14×12 0.9

HJG-DA30CL 117.2 92 60 1.1

HJG-DA35C 55 18 70 10 50 47 10 M8×12 107.8 81 50 9×14×12 1.5

HJG-DA35CL 131.8 105 72 2

HJG-DA45C 70 20.5 86 13 60 60 15 M10×16 135 102 60 14×20×16 2.6

HJG-DA45CL 163 130 80 3.1

HJG-DA55C 80 23.5 100 12.5 75 67 18 M12×18 161 118 75 16×23×20 4.3

HJG-DA55CL 199 156 95 5.4

HJG-DA65C 90 31.5 126 25 76 76 23 M16×16 195 147 70 18×26×22 7.3

HJG-DA65CL 255 207 120 9.3

HJG-DA85C 110 39 163 31.5 100 94 30 M18×25 243.4 179 80 24×35×28 13

HJG-DA85CL 300.4 236 140 16

汉江导轨尺寸油杯尺寸额定额定额定力矩导轨

动载静载

型号 B4 H1 F 单根 L4 G N C C0 MA MB MC 重量

长度 (KN) (KN) (N.m) (N.m) (N.m) 米

Lmax kg

HJG-DA15C 16 15 60 500 2.5 Φ4 9 6.07 6.8 55.5 55.5 88.8 1.5

HJG-DA20C 20 18 60 1400 11 M6 5 11.6 14.5 92.4 92.4 154 2.3

HJG-DA20CL 13.6 20.3 121.8 121.8 203

HJG-DA25C 23 22 60 3000 11 M6 10.2 17.7 22.6 149.8 149.8 246 3.3

HJG-DA25CL 20.7 34.97 244.8 244.8 402

HJG-DA30C 28 26 80 3000 11 M6 10 27.6 34.4 311.3 311.3 546 4.6

HJG-DA30CL 33.4 45.8 560 560 745.2

HJG-DA35C 34 29 80 3000 11 M6 17 35.1 47.2 488 488 790 6.2

HJG-DA35CL 39.96 64.85 681 681 1102.45

HJG-DA45C 45 38 100 3000 11 M6 21 42.5 71 848 848 1448 11.1

HJG-DA45CL 64.4 102.1 1345.4 1345.4 2247.25

HJG-DA55C 53 44 120 3000 14 M8×1 22 79.4 101 1547 1547 2580 14.9

HJG-DA55CL 92.2 142.5 2264.3 2264.3 3776.25

HJG-DA65C 63 53 150 3000 14 M8×1 12 115 163 3237 3237 4860 21.7

HJG-DA65CL 148 224.5 4627.5 4627.5 6945.75

HJG-DA85C 85 65 180 3000 14 M8×1 14 172.2 257.4 6076.4 6076.4 12842 36.1

HJG-DA85CL 202.3 327.6 9946.3 9946.3 15410
