BGC系列钢珠与球保持器之间含有油膜!所以相对摩擦由油膜吸收。易言之钢珠纯粹与油膜作剪切运动。故产生摩擦低。由于BGC系列钢珠之间为球保持器含油膜接触并非钢珠直接接触，所以BGC系列钢珠接触点相对速度为无链带型线性滑轨的一半，又无链带型线性滑轨为点接触，产生压力远超过BGC系列球保持器之油膜接触所产生的摩擦力，所以综合上述原因-南京哈宁轴承制造有限公司

BGC系列钢珠与球保持器之间含有油膜!所以相对摩擦由油膜吸收。易言之钢珠纯粹与油膜作剪切运动。故产生摩擦低。由于BGC系列钢珠之间为球保持器含油膜接触并非钢珠直接接触，所以BGC系列钢珠接触点相对速度为无链带型线性滑轨的一半，又无链带型线性滑轨为点接触，产生压力远超过BGC系列球保持器之油膜接触所产生的摩擦力，所以综合上述原因

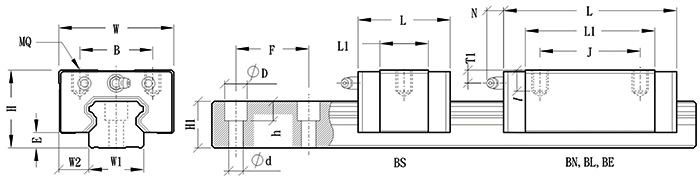

型号	组装规格-mm				滑块-mm									滑轨-mm						额定负载-KN			滑块	滑轨
型号	H	W	W2	E	L	B	J	MQ	I	L1	OiI H	T1	N	W1	H1	F	d	D	h	C-BGX	C-BGC	C0	Kg	Kg/M
S15BS	24	34	9.5	3.3	40.6	26		M4	4.8	22.2	M4*0.7	5.5	5	15	13.0	60	4.5	7.5	6.0	4.6	5.7	9.8	0.10	1.28
S15BN	24	34	9.5	3.3	58.6	26	26	M4	4.8	40.2	M4*0.7	5.5	5	15	13.0	60	4.5	7.5	6.0	9.3	11.5	19.6	0.17	1.28
S15BL	24	34	9.5	3.3	66.1	26	26	M4	4.8	47.7	M4*0.7	5.5	5	15	13.0	60	4.5	7.5	6.0	11.3	13.9	23.7	0.18	1.28
S15BE	24	34	9.5	3.3	81.1	26	34	M4	4.8	62.7	M4*0.7	5.5	5	15	13.0	60	4.5	7.5	6.0	13.7	16.9	31.4	0.22	1.28
S20BS	28	42	11.0	4.5	48.3	32		M5	5.5	27.5	M6*1	5.1	15.6	20	16.3	60	6.0	9.5	8.5	7.4	9.1	15.7	0.17	2.15
S20BN	28	42	11.0	4.5	69.3	32	32	M5	5.5	48.5	M6*1	5.1	15.6	20	16.3	60	6.0	9.5	8.5	14.3	17.7	30.5	0.26	2.15
S25BS	33	48	12.5	5.8	54.5	35		M6	6.8	32.3	M6*1	7.2	15.6	23	19.2	60	7.0	11.0	9.0	10.3	12.7	21.0	0.21	2.88
S25BN	33	48	12.5	5.8	79.2	35	35	M6	6.8	57.5	M6*1	7.2	15.6	23	19.2	60	7.0	11.0	9.0	20.1	24.8	41.1	0.38	2.88
X25BN	36	48	12.5	5.8	79.2	35	35	M6	9.0	57.5	M6*1	10.2	15.6	23	19.2	60	7.0	11.0	9.0	20.1	24.8	41.1	0.40	2.88
X25BL	36	48	12.5	5.8	93.9	35	35	M6	9.0	72.2	M6*1	10.2	15.6	23	19.2	60	7.0	11.0	9.0	25.9	31.9	52.8	0.54	2.88
X25BE	36	48	12.5	5.8	108.6	35	50	M6	9.0	86.9	M6*1	10.2	15.6	23	19.2	60	7.0	11.0	9.0	29.2	36.0	63.3	0.67	2.88
S30BS	42	60	16.0	7.0	64.2	40		M8	10.0	37.2	M6*1	8.0	15.6	28	22.8	80	9.0	14.0	12.0	14.7	18.2	27.0	0.50	4.45
S30BN	42	60	16.0	7.0	94.8	40	40	M8	10.0	67.8	M6*1	8.0	15.6	28	22.8	80	9.0	14.0	12.0	29.7	36.7	54.6	0.80	4.45
S30BL	42	60	16.0	7.0	105.0	40	40	M8	10.0	78.0	M6*1	8.0	15.6	28	22.8	80	9.0	14.0	12.0	38.5	47.5	70.7	0.94	4.45
S30BE	42	60	16.0	7.0	130.5	40	60	M8	10.0	103.5	M6*1	8.0	15.6	28	22.8	80	9.0	14.0	12.0	42.9	52.9	86.7	1.16	4.45
S35BS	48	70	18.0	7.5	75.5	50		M8	10.0	44.5	M6*1	8.0	15.6	34	26.0	80	9.0	14.0	12.0	21.2	26.2	40.7	0.80	6.25
S35BN	48	70	18.0	7.5	111.5	50	50	M8	10.0	80.5	M6*1	8.0	15.6	34	26.0	80	9.0	14.0	12.0	42.4	52.3	81.1	1.20	6.25
S35BL	48	70	18.0	7.5	123.5	50	50	M8	10.0	92.5	M6*1	8.0	15.6	34	26.0	80	9.0	14.0	12.0	52.9	65.4	101.4	1.40	6.25
S35BE	48	70	18.0	7.5	153.5	50	72	M8	10.0	122.5	M6*1	8.0	15.6	34	26.0	80	9.0	14.0	12.0	58.3	71.9	125.3	1.84	6.25
S45BN	60	86	20.5	8.9	129.0	60	60	M10	15.5	94.0	M8*1.25	14.4	16	45	31.1	105	14.0	20.0	17.0	58.0	71.6	108.9	1.64	9.60
S45BL	60	86	20.5	8.9	145.0	60	60	M10	15.5	110.0	M8*1.25	14.4	16	45	31.1	105	14.0	20.0	17.0	69.0	85.1	129.5	1.93	9.60
S45BE	60	86	20.5	8.9	174.0	60	80	M10	15.5	139.0	M8*1.25	14.4	16	45	31.1	105	14.0	20.0	17.0	79.7	98.4	163.3	2.42	9.60
S55BN	70	100	23.5	12.7	155.0	75	75	M12	18.0	116.0	M8*1.25	14.0	16	53	38.0	120	16.0	23.0	20.0	69.8	86.2	133.4	2.67	13.80
S55BL	70	100	23.5	12.7	193.0	75	75	M12	18.0	154.0	M8*1.25	14.0	16	53	38.0	120	16.0	23.0	20.0	94.2	116.3	178.9	3.57	13.80
S55BE	70	100	23.5	12.7	210.0	75	95	M12	18.0	171.0	M8*1.25	14.0	16	53	38.0	120	16.0	23.0	20.0	127.7	157.7	253.6	3.97	13.80

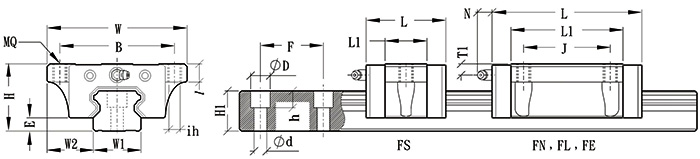

型号	组装规格-mm				滑块-mm										滑轨-mm						额定负载-kN			滑块	滑轨
型号	H	W	W2	E	L	B	J	MQ	ih	I	L1	Oil H	T1	N	W1	H1	F	d	D	h	C-BGX	C-BGC	C0	Kg	Kg/M
H15FN	24	47	16.0	3.3	58.6	38	30	M5	4.4	8.0	40.2	M4*0.7	5.5	(5)	15	13.0	60	4.5	7.5	6.0	9.3	11.5	19.6	0.21	1.28
H15FL	24	47	16.0	3.3	66.1	38	30	M5	4.4	8.0	47.7	M4*0.7	5.5	(5)	15	13.0	60	4.5	7.5	6.0	11.3	13.9	23.7	0.23	1.28
H15FE	24	47	16.0	3.3	81.1	38	30	M5	4.4	8.0	62.7	M4*0.7	5.5	(5)	15	13.0	60	4.5	7.5	6.0	13.7	16.9	31.4	0.29	1.28
S15FS	24	52	18.5	3.3	40.6	41		M5	4.4	8.0	22.2	M4*0.7	5.5	(5)	15	13.0	60	4.5	7.5	6.0	4.6	5.7	9.8	0.12	1.28
S15FN	24	52	18.5	3.3	58.6	41	26	M5	4.4	8.0	40.2	M4*0.7	5.5	(5)	15	13.0	60	4.5	7.5	6.0	9.3	11.5	19.6	0.19	1.28
H20FN	30	63	21.5	4.5	69.3	53	40	M6	5.4	9.0	48.5	M6*1	7.1	(15.6)	20	16.3	60	6.0	9.5	8.5	14.3	17.7	30.5	0.40	2.15
H20FL	30	63	21.5	4.5	82.1	53	40	M6	5.4	9.0	61.3	M6*1	7.1	(15.6)	20	16.3	60	6.0	9.5	8.5	18.6	23.0	39.5	0.46	2.15
H20FE	30	63	21.5	4.5	97.3	53	40	M6	5.4	9.0	76.5	M6*1	7.1	(15.6)	20	16.3	60	6.0	9.5	8.5	22.1	27.3	48.9	0.61	2.15
S20FS	28	59	19.5	4.5	48.3	49		M6	5.4	7.0	27.5	M6*1	5.1	(15.6)	20	16.3	60	6.0	9.5	8.5	7.4	9.1	15.7	0.18	2.15
S20FN	28	59	19.5	4.5	69.3	49	32	M6	5.4	7.0	48.5	M6*1	5.1	(15.6)	20	16.3	60	6.0	9.5	8.5	14.3	17.7	30.5	0.31	2.15
H25FN	36	70	23.5	5.8	79.7	57	45	M8	7.0	10.0	57.5	M6*1	10.2	(15.6)	23	19.2	60	7.0	11.0	9.0	20.1	24.8	41.1	0.57	2.88
H25FL	36	70	23.5	5.8	94.4	57	45	M8	7.0	10.0	72.2	M6*1	10.2	(15.6)	23	19.2	60	7.0	11.0	9.0	25.9	31.9	52.8	0.72	2.88
H25FE	36	70	23.5	5.8	109.1	57	45	M8	7.0	10.0	86.9	M6*1	10.2	(15.6)	23	19.2	60	7.0	11.0	9.0	29.2	36.0	63.3	0.89	2.88
S25FS	33	73	25.0	5.8	54.5	60		M8	7.0	7.0	32.3	M6*1	7.2	(15.6)	23	19.2	60	7.0	11.0	9.0	10.3	12.7	21.0	0.33	2.88
S25FN	33	73	25.0	5.8	79.7	60	35	M8	7.0	7.0	57.5	M6*1	7.2	(15.6)	23	19.2	60	7.0	11.0	9.0	20.1	24.8	41.1	0.50	2.88
H30FN	42	90	31.0	7.0	94.8	72	52	M10	8.6	11.0	67.8	M6*1	8.0	(15.6)	28	22.8	80	9.0	14.0	12	29.7	36.7	54.6	1.10	4.45
H30FL	42	90	31.0	7.0	105.0	72	52	M10	8.6	11.0	78.0	M6*1	8.0	(15.6)	28	22.8	80	9.0	14.0	12	38.5	47.5	70.7	1.34	4.45
H30FE	42	90	31.0	7.0	130.5	72	52	M10	8.6	11.0	103.5	M6*1	8.0	(15.6)	28	22.8	80	9.0	14.0	12	42.9	52.9	86.7	1.66	4.45
H30FS	42	90	31.0	7.0	64.2	72		M10	8.6	11.0	37.2	M6*1	8.0	(15.6)	28	22.8	80	9.0	14.0	12	14.7	18.2	27.0	0.80	4.45
H35FN	48	100	33.0	7.5	111.5	82	62	M10	8.6	12.0	80.5	M6*1	8.0	(16)	34	26.0	80	9.0	14.0	12	42.4	52.3	81.1	1.50	6.25
H35FL	48	100	33.0	7.5	123.5	82	62	M10	8.6	12.0	92.5	M6*1	8.0	(16)	34	26.0	80	9.0	14.0	12	52.9	65.4	101.4	1.90	6.25
H35FE	48	100	33.0	7.5	153.5	82	62	M10	8.6	12.0	122.5	M6*1	8.0	(16)	34	26.0	80	9.0	14.0	12	58.3	71.9	125.3	2.54	6.25
H35FS	48	100	33.0	7.5	75.5	82		M10	8.6	12.0	44.5	M6*1	8.0	(16)	34	26.0	80	9.0	14.0	12	21.2	26.2	40.7	1.00	6.25
H45FN	60	120	37.5	8.9	129.0	100	80	M12	10.6	15.5	94.0	M8*1.25	14.4	(16)	45	31.1	105	14	20.0	17	58.0	71.6	108.9	2.27	9.60
H45FL	60	120	37.5	8.9	145.0	100	80	M12	10.6	15.5	110.0	M8*1.25	14.4	(16)	45	31.1	105	14	20.0	17	69.0	85.1	129.5	2.68	9.60
H45FE	60	120	37.5	8.9	174.0	100	80	M12	10.6	15.5	139.0	M8*1.25	14.4	(16)	45	31.1	105	14	20.0	17	79.7	98.4	163.3	3.42	9.60
H55FN	70	140	43.5	12.7	155.0	116	95	M14	12.6	18.5	116.0	M8*1.25	14.0	(16)	53	38.0	120	16	23.0	20	69.8	86.2	133.4	3.44	13.8
H55FL	70	140	43.5	12.7	193.0	116	95	M14	12.6	18.5	154.0	M8*1.25	14.0	(16)	53	38.0	120	16	23.0	20.	94.2	116.3	178.9	4.63	13.8
H55FE	70	140	43.5	12.7	210.0	116	95	M14	12.6	18.5	171.0	M8*1.25	14.0	(16)	53	38.0	120	16	23.0	20	127.7	157.7	253.6	5.16	13.8

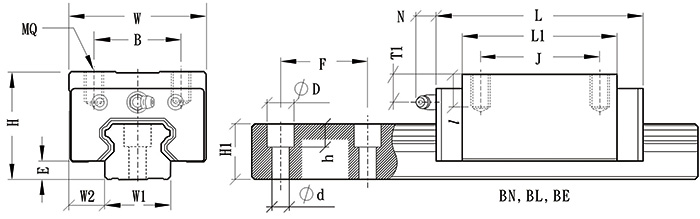

型号组装规格滑块-MM 滑轨-MM 额定负载-KN 滑块滑轨

H W W2 E L B J J1 MQ I LI Oi1H T1 N W1 H1 F d D h C-BGX C-BGC C0 Kg Kg/M

H15BN 28 34 9.5 3.3 58.6 26 26 M4 6.0 40.2 M4*0.7 9.5 5 15 13.0 60 4.5 7.5 6.0 9.3 11.5 19.6 0.19 1.28

H20BN 30 44 12.0 4.5 69.3 32 36 M5 6.5 48.5 M6*1 7.1 15.6 20 16.3 60 6.0 9.5 8.5 14.3 17.7 30.5 0.31 2.15

H20BL 30 44 12.0 4.5 82.1 32 36 50 M5 6.5 61.3 M6*1 7.1 15.6 20 16.3 60 6.0 9.5 8.5 18.6 23.0 39.5 0.36 2.15

H20BE 30 44 12.0 4.5 97.3 32 50 M5 6.5 76.5 M6*1 7.1 15.6 20 16.3 60 6.0 9.5 8.5 22.1 27.3 48.9 0.47 2.15

H25BN 40 48 12.5 5.8 79.2 35 35 M6 9.0 57.5 M6*1 14.2 15.6 23 19.2 60 7.0 11.0 9.0 20.1 24.8 41.1 0.45 2.88

H25BL 40 48 12.5 5.8 93.9 35 35 50 M6 9.0 72.2 M6*1 14.2 15.6 23 19.2 60 7.0 11.0 9.0 25.9 31.9 52.8 0.66 2.88

H25BE 40 48 12.5 5.8 108.6 35 50 M6 9.0 86.9 M6*1 14.2 15.6 23 19.2 60 7.0 11.0 9.0 29.2 36.0 63.3 0.80 2.88

H30BN 45 60 16.0 7.0 94.8 40 40 M8 12.0 67.8 M6*1 11.0 15.6 28 22.8 80 9.0 14.0 12.0 29.7 36.7 54.6 0.91 4.45

H30BL 45 60 16.0 7.0 105.0 40 40 60 M8 12.0 78.0 M6*1 11.0 15.6 28 22.8 80 9.0 14.0 12.0 38.5 47.5 70.7 1.04 4.45

H30BE 45 60 16.0 7.0 130.5 40 60 M8 12.0 103.5 M6*1 11.0 15.6 28 22.8 80 9.0 14.0 12.0 42.9 52.9 86.7 1.36 4.45

H35BN 55 70 18.0 7.5 111.5 50 50 M8 12 80.5 M6*1 15.0 15.6 34 26.0 80 9.0 14.0 12.0 42.4 52.3 81.1 1.50 6.25

H35BL 55 70 18.0 7.5 123.5 50 50 72 M8 12.0 92.5 M6*1 15.0 15.6 34 26.0 80 9.0 14.0 12.0 52.9 65.4 101.4 1.80 6.25

H35BE 55 70 18.0 7.5 153.5 50 72 M8 12.0 122.5 M6*1 15.0 15.6 34 26.0 80 9.0 14.0 12.0 58.3 71.9 125.3 2.34 6.25

H45BN 70 86 20.5 8.9 129.0 60 60 M10 18.0 94.0 M8*1.25 24.4 16 45 31.1 105 14.0 20.0 17.0 58.0 71.6 108.9 2.28 9.60

H45BL 70 86 20.5 8.9 145.0 60 60 80 M10 18.0 110.0 M8*1.25 24.4 16 45 31.1 105 14.0 20.0 17.0 69.0 85.1 129.5 2.67 9.60

H45BE 70 86 20.5 8.9 174.0 60 80 M10 18.0 139.0 M8*1.25 24.4 16 45 31.1 105 14.0 20.0 17.0 79.7 98.4 163.3 3.35 9.60

H55BN 80 100 23.5 12.7 155.0 75 75 M12 22.0 116.0 M8*1.25 24.0 16 53 38.0 120 16.0 23.0 20.0 69.8 86.2 133.4 3.42 13.80

H55BL 80 100 23.5 12.7 193.0 75 75 95 M12 22.0 154.0 M8*1.25 24.0 16 53 38.0 120 16.0 23.0 20.0 94.2 116.3 178.9 4.57 13.80

H55BE 80 100 23.5 12.7 210.0 75 95 M12 22.0 171.0 M8*1.25 24.0 16 53 38.0 120 16.0 23.0 20.0 127.7 157.7 253.6 5.08 13.80
