d:外径 Screw O.D.  I:导程 Lead  Da:珠径 Ball Dia   n:珠圈数 Number of Circuits  K:刚性 Stiffness(Kgf/um)
Ca:动额定负荷 Basic Dynamic Rating Load(Kgf)     Coa:静额定负荷 Basic Static Rating Load(Kgf)

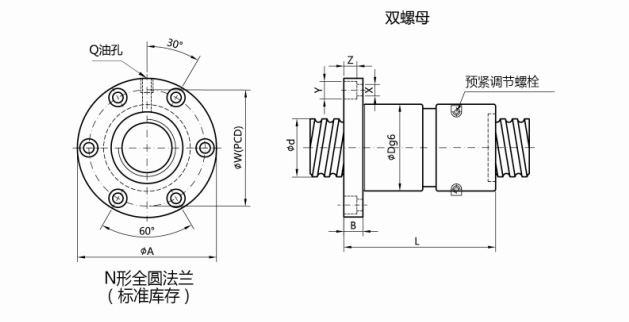

螺帽型号	螺杆，螺帽的基本数据  Dimensions
Nut Model No.	d	I	Da	D	A	B	L	W	X	Y	Z	Q	n	Ca	Coa	K
DFA01604-T4	16	4	2.381	28	52	10	80	38	5.8	10	6	M6	1X4	973	2406	43
DFA01605-T4		5	3.175	28	52	10	100	38	5.8	10	6	M6	1X4	1380	3052	44
DFA02004-T4	20	4	2.381	36	62	11	80	48	5.8	10	6	M6	1X4	1006	2987	51
DFA02005-T4		5	3.175	36	62	11	101	48	5.8	10	6	M6	1X4	1551	3875	53
DFA02504-T4	25	4	2.381	40	66	11	80	53	5.8	10	6	M6	1X4	1180	3795	60
DFA02505-T4		5	3.175	40	66	11	101	53	5.8	10	6	M6	1X4	1724	4904	62
DFA03205-T4	32	5	3.175	50	82	13	102	67	7	12	7	M6	1X4	1922	6343	74
DFA03210-T4		10	6.350	53	90	15	162	71	9	15	9	M6	1X4	4805	12208	82
d:外径 Screw O.D.  I:导程 Lead  Da:珠径 Ball Dia   n:珠圈数 Number of Circuits  K:刚性 Stiffness(Kgf/um)
Ca:动额定负荷 Basic Dynamic Rating Load(Kgf)     Coa:静额定负荷 Basic Static Rating Load(Kgf)
螺帽型号	螺杆，螺帽的基本数据  Dimensions
Nut Model No.	d	I	Da	D	A	B	L	W	X	Y	Z	Q	n	Ca	Coa	K
DFA04005-T4	40	5	3.175	60	94	15	105	75	9	15	9	M8	1X4	2110	7988	87
DFA04010-T4		10	6.350	63	108	18	165	85	11	18	11	M8	1X4	5399	15500	99
DFA05010-T4	50	10	6.350	75	118	18	171	95	11	18	11	M8	1X4	6004	19614	117
DFA06310-T4	63	10	6.350	90	138	22	182	112	13.5	22	13	M8	1X4	6719	25358	139
DFA08010-T4	80	10	6.350	105	156	22	182	130	13.5	22	13	M8	1X4	7346	31953	156
