外球面轴承带座NAFL201、NAFL202、NAFL203、NAFL204、NAFL205、NAFL206、NAFL207、NAFL208、NAFL209、NAFL210、NAFL211、NAFL212、NAFL213、NAFL214、NAFL215

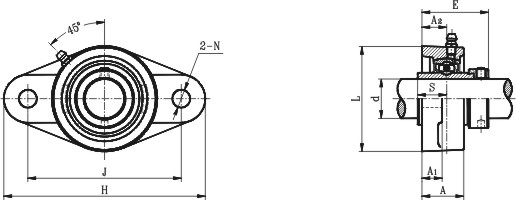

带座轴承代号	轴径		外形尺寸(mm)										螺栓规格	轴承代码	座代号	重量(kg)	可选用
	d		H	J	L	A2	A1	A	E	N	S	F					可选用
	(in.)	(mm)	H	J	L	A2	A1	A	E	N	S	F					N
NAFL201S		12	99	76.5	57	15	11	24.5	38.4	11.5	13.9		M10	NA201S	FL203	0.48
NAFL201-8S	1/2		99	76.5	57	15	11	24.5	38.4	11.5	13.9		M10	NA201-8S	FL203	0.48
NAFL203S		17	99	76.5	57	15	11	24.5	38.4	11.5	13.9		M10	NA203S	FL203	0.48
NAFL203-11S	11/16		99	76.5	57	15	11	34.5	38.4	11.5	13.9		M10	NA203-11S	FL203	0.48
NAFL204-12	3/4		113	90	60	15	11	25.5	41.5	11.5	17	31	M10	NA204-12	FL204	0.7	12
NAFL204		20	113	90	60	15	11	25.5	41.5	11.5	17	31	M10	NA204	FL204	0.7	12
NAFL205-14	7/8		130	99	68	16	13	27	42.9	11.5	17.4	36	M10	NA205-14	FL205	0.8	16
NAFL205-15	15/16		130	99	68	16	13	27	42.9	11.5	17.4	36	M10	NA205-25	FL205	0.8	16
NAFL205		25	130	99	68	16	13	27	42.9	11.5	17.4	36	M10	NA205	FL205	0.8	16
NAFL205-16	1		130	99	68	16	13	27	42.9	11.5	17.4	36	M10	NA205-16	FL206	0.8	16
NAFL206-18	1-1/8		148	117	80	18	13	31	48.1	11.5	18.2	42	M10	NA206-18	FL206	1.2	16
NAFL206		30	148	117	80	18	13	31	48.1	11.5	18.2	42	M10	NA206	FL206	1.2	16
NAFL206-19	1-3/16		148	117	80	18	13	31	48.1	11.5	18.2	42	M10	NA206-19	FL206	1.2	16
NAFL206-20	1-1/4		148	117	80	18	13	31	48.1	11.5	18.2	42	M10	NA206-20	FL206	1.2	16
NAFL207-20	1-1/4		161	130	90	19	14	34	51.3	14	18.8	50	M12	NF207-20	FL207	1.6	16
NAFL207-21	1-5/16		161	130	90	19	14	34	51.3	14	18.8	50	M12	NA207-21	FL207	1.6	16
NAFL207-22	1-3/8		161	130	90	19	14	34	51.3	14	18.8	50	M12	NA207-22	FL207	1.6	16
NAFL207		35	161	130	90	19	14	34	51.3	14	18.8	50	M12	NA207	FL207	1.6	16
NAFL207-23	1-7/16		161	130	90	19	14	34	51.3	14	18.8	50	M12	NA207-23	FL207	1.6	16
NAFL208-24	1-1/2		175	144	100	21	14	36	55.9	14	21.4	55	M12	NA208-24	FL208	1.9	16
NAFL208-25	1-9/16		175	144	100	21	14	36	55.9	14	21.4	55	M12	NA208-25	FL208	1.9	16
NAFL208		40	175	144	100	21	14	36	55.9	14	21.4	55	M12	NA208	FL208	1.9	16
NAFL209-26	1-5/8		188	148	108	22	16	38	56.9	18	21.4		M16	NA209-26	FL209	2.3	19
NAFL209-27	1-11/16		188	148	108	22	16	38	56.9	18	21.4		M16	NA209-27	FL209	2.3	19
NAFL209-28	1-3/4		188	148	108	22	16	38	56.9	18	21.4		M16	NA209-28	FL209	2.3	19
NAFL209		45	188	148	108	22	16	38	56.9	18	21.4		M16	NA209	FL209	2.3	19
NAFL210-30	1-7/8		197	157	115	22	16	40	60.1	18	24.6	64	M16	NA210-30	FL210	2.6	19
NAFL210-31	1-15/16		197	157	115	22	16	40	60.1	18	24.6	64	M16	NA210-31	FL210	2.6	19
NAFL210		50	197	157	115	22	16	40	60.1	18	24.6	64	M16	NA210	FL210	2.6	19
NAFL211-32	2		224	184	130	25	18	43	68.6	18	27.7	71	M16	NA211-32	FL211	3.8	19
NAFL211-34	2-1/8		224	184	130	25	18	43	68.6	18	27.7	71	M16	NA211-34	FL211	3.8	19
NAFL211		55	224	184	130	25	18	43	68.6	18	27.7	71	M16	NA211	FL211	3.8	19
NAFL211-35	2-3/16		224	184	130	25	18	43	68.6	18	27.7	71	M16	NA211-35	FL211	3.8	19
NAFL212-36	2-1/4		250	202	140	29	18	48	75.8	18	30.9	77	M16	NA212-36	FL212	4.8	23
NAFL212		60	250	202	140	29	18	48	75.8	18	30.9	77	M16	NA212	FL212	4.8	23
NAFL212-38	2-3/8		250	202	140	29	18	48	75.8	18	30.9	77	M16	NA212-38	FL212	4.8	23
NAFL212-39	2-7/16		250	202	140	29	18	48	75.8	18	30.9	77	M16	NA212-39	FL212	4.8	23
NAFL213-40	2-1/2		258	210	155	30	20	50	81.6	23	34.1	84	M20	NA213-40	FL213	6.0
NAFL213		65	258	210	155	30	20	50	81.6	23	34.1	84	M20	NA213	FL213	6.0
NAFL214-44	2-3/4		265	216	160	31	20	54	82.6	23	34.1	89	M20	NA214-44	FL214	6.3
NAFL214		70	265	216	160	31	20	54	82.6	23	34.1	89	M20	NA214	FL214	6.3
NAFL215		75	275	225	164	34	22	55	88.8	23	37.3	94	M20	NA215	FL215	7.2
NAFL215-48	3		275	225	164	34	22	55	88.8	23	37.3	94	M20	NA215	FL215	7.2
NAFL216		80	290	233	180	34	22	58	91.5	25	37.3	101	M22	NA216	FL216	7.37
NAFL202S		15	99	76.5	57	15	11	24.5	38.4	11.5	13.9		M10	NA202S	FL203	0.48
NAFL202-10SQ	5/8		99	76.5	57	15	11	24.5	38.4	11.5	13.9		M10	NA202-10S	FL203	0.48
NAFL201		12	113	90	60	15	11	25.5	41.5	11.5	17	31	M10	NA201	FL204	0.73	12
NAFL201-8	1/2		113	90	60	15	11	25.5	41.5	11.5	17	31	M10	NA201-8	FL204	0.73	12
NAFL202		15	113	90	60	15	11	25.5	41.5	11.5	17	31	M10	NA202	FL204	0.73	12
NAFL202-10	5/8		113	90	60	15	11	25.5	41.5	11.5	17	31	M10	NA202-10	FL204	0.73	12
